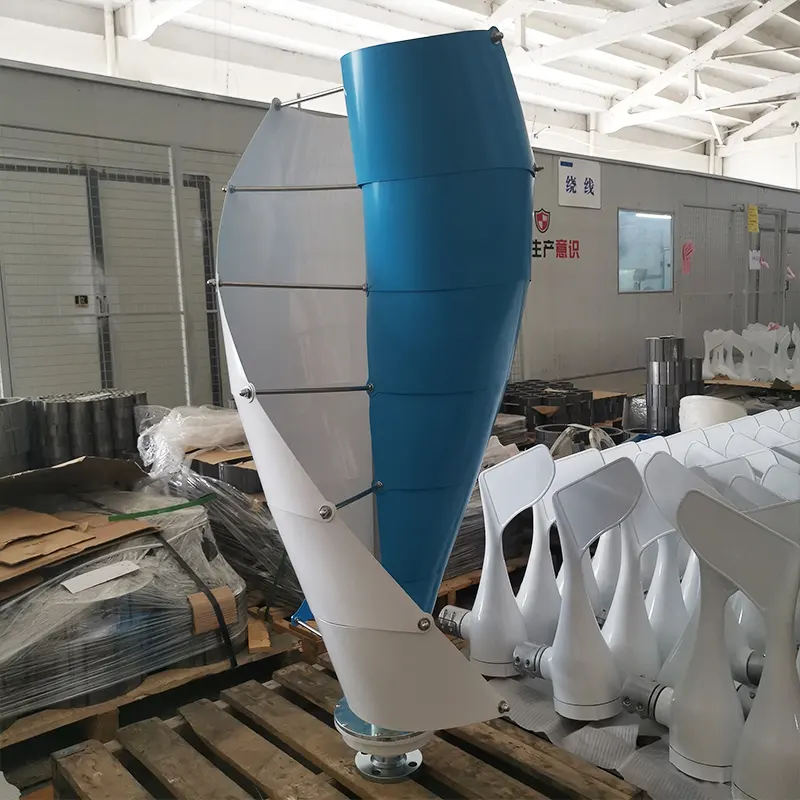

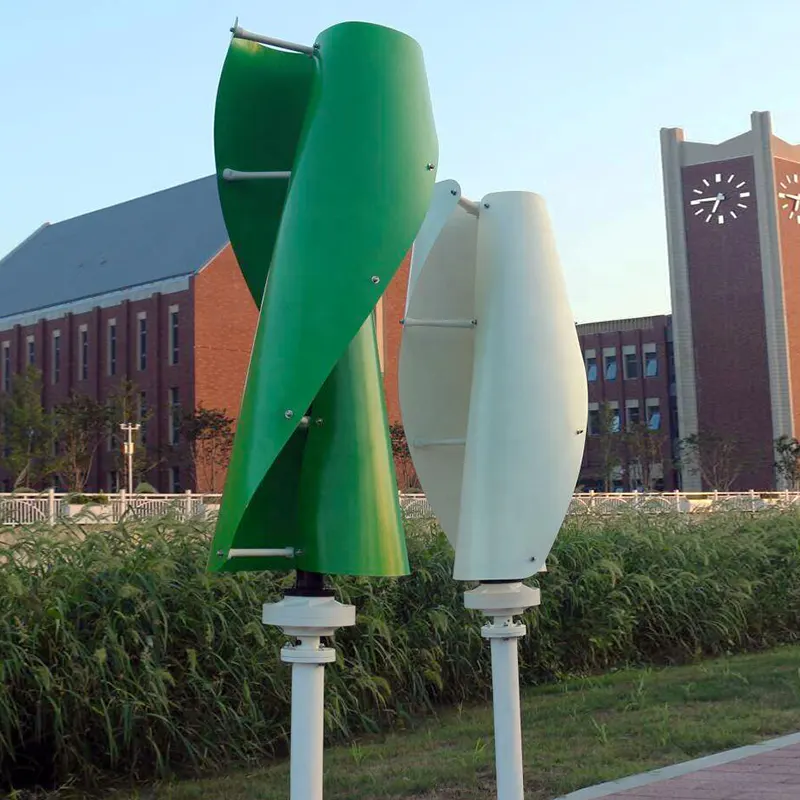

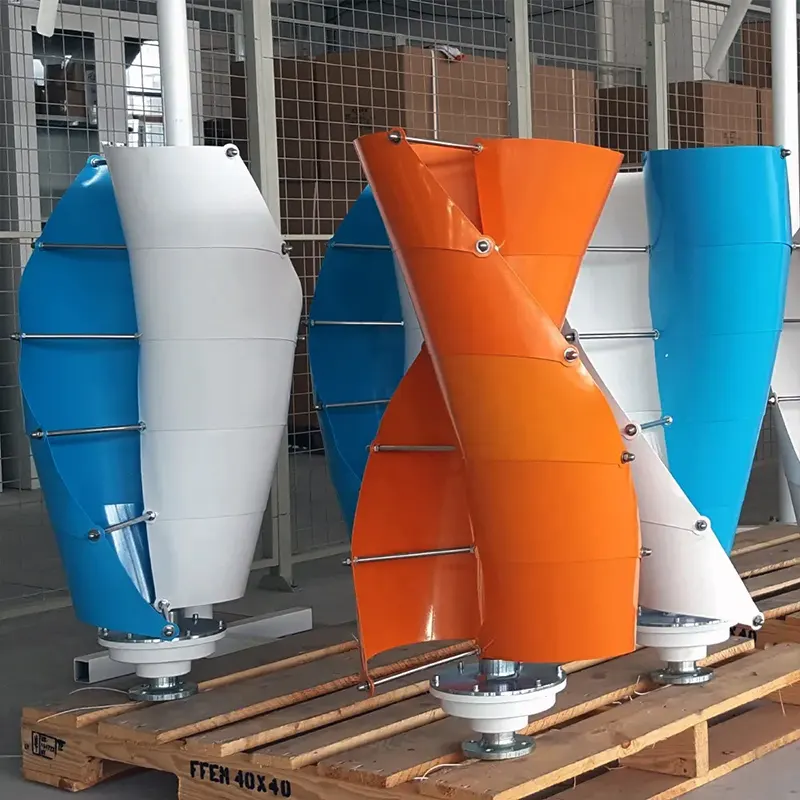

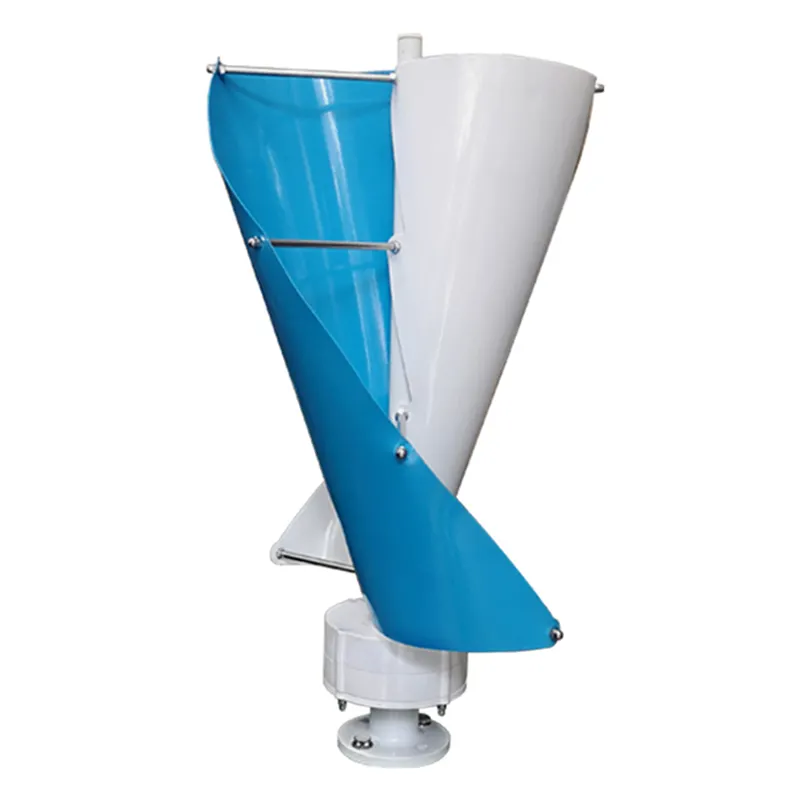

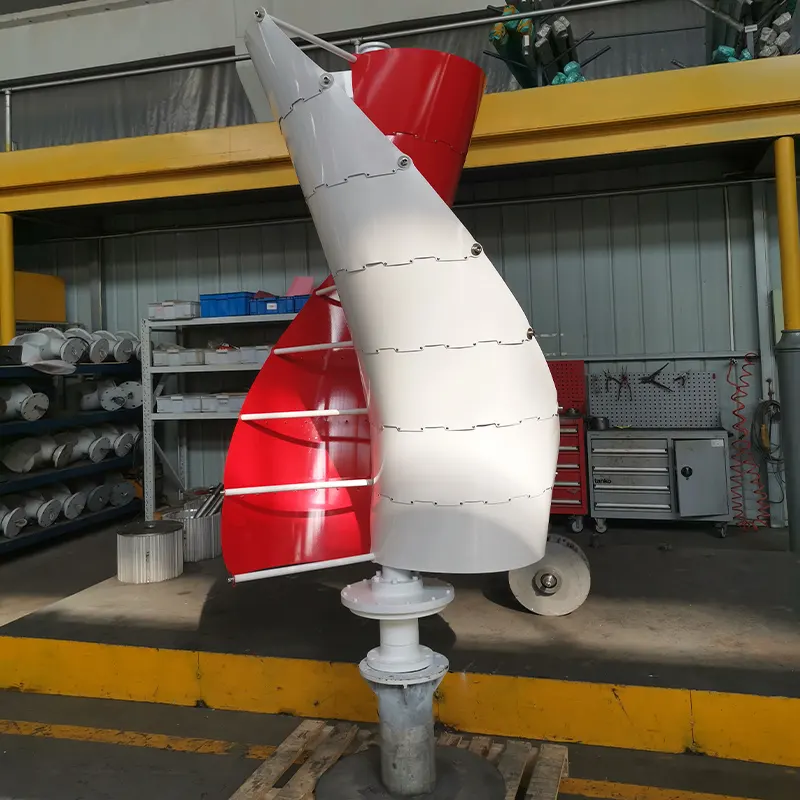

Products Description
1.Rich colors: white, orange, yellow, blue, green and mixed colors, which can be customized.
2.Integrated blade design ensures higher rotation stability.
3.Coreless PMG provides lower starting torque / wind speed and longer service life.
4. Maximum speed protection. No higher than 300 rpm regardless of wind speed.
5.Easy to install.
6.The design service life is 10-15 years.
Technical Parameter
|
Model
|
ES-V1-400W
|
Number of blades
|
2 pieces
|
|
Rated power
|
400W
|
Blades material
|
reinforced FRP and carbon fiber
|
|
Max power
|
450W
|
Body material
|
8A3 carbon steel
|
|
Rated voltage
|
12V/24V
|
Generator
|
three phase AC permanent magnet generator/maglev generator
|
|
Start-up wind speed
|
1.5m/s
|
Control System
|
electromagnetic brake
|
|
Rated wind speed
|
13m/s
|
Yaw Mode
|
automatic windward angle
|
|
Survival wind speed
|
45m/s
|
Lubrication mode
|
self lubrication
|
|
Net weight of main engine
|
19kg
|
Tower form
|
guyed tower/independent tower
|
|
Wind wheel diameter
|
0.5m
|
Working temperature
|
-40℃-80℃
|
|
Blade Height
|
1m
|
|
Model
|
ES-V1- 200W
|
ES- V1-300W
|
ES- V1-400W
|
|
Rated power
|
200W
|
300W
|
400W
|
|
Max power
|
250W
|
350W
|
450W
|
|
Nominal voltage
|
12V/24V
|
12V /24V
|
12V/24V
|
|
Start-up wind speed
|
1.5m/s
|
1.5 m/s
|
1.5m/s
|
|
Rated wind speed
|
10m/s
|
11.5m/s
|
13m/s
|
|
Survival wind speed
|
45m/s
|
45 m/s
|
45m/s
|
|
Top net weight
|
16kg
|
17kg
|
19kg
|
|
Wind wheel diameter
|
450mm
|
480mm
|
500mm
|
|
Number of blades
|
2
|
||
|
Blades material
|
Reinforced glass steel and carbon fiber
|
||
|
Fuselage material
|
8A3 carbon steel
|
||
|
Generator
|
Three phase ac permanent magnet generator/Maglev generators
|
||
|
Control System
|
Electromagnetic
|
||
|
Yaw Mode
|
The wind Angle automatically
|
||
|
Lubrication mode
|
self-lubricating
|
||
|
Tower form
|
Cable/free-standing tower
|
||
|
Working temperature
|
-40℃～80℃
|
||
Installation tips for wind power generation
Wind turbines are a promising source of renewable energy. However, installing them can be a complicated process. Here are a few tips to help ensure successful installation of a wind turbine.
1. Site selection:
The ideal location for a wind turbine is an open area with constant wind flow. It is important to take into account factors such as surrounding terrain, proximity to overhead power lines, and zoning regulations. Consult with an expert to determine the best location for your wind turbine.
2. Foundation:
The foundation is a crucial component of the wind turbine. A strong foundation will ensure that your wind turbine is stable and secure. The type of foundation required will depend on the location and size of the turbine. Consult with a professional to ensure the proper foundation is installed.
3. Tower installation:
Wind turbine towers need to be installed upright and secured to the foundation. The installation of the tower should be done carefully to ensure stability and safety. Always follow the manufacturer’s instructions and consult with an expert for guidance.

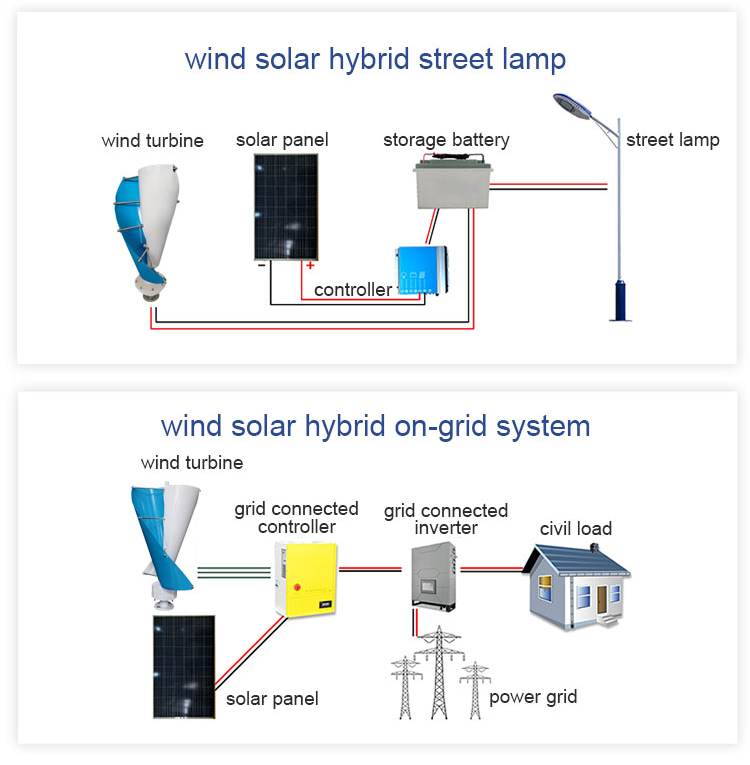

4. Wiring:
Wiring the turbine to the grid is an important step. This should be done by a licensed professional and in compliance with local regulations and safety codes. Proper wiring will ensure that the electricity generated by the turbine is safely transferred to the grid.
5. Maintenance:
Maintenance of the wind turbine is essential to ensure its optimal performance. Regular inspections and cleaning of the blades, hub, and tower are crucial. Consult with the manufacturer for specific maintenance instructions and schedule routine maintenance visits with a professional.
In summary, installing a wind turbine can be complex and requires specialized knowledge and expertise.
