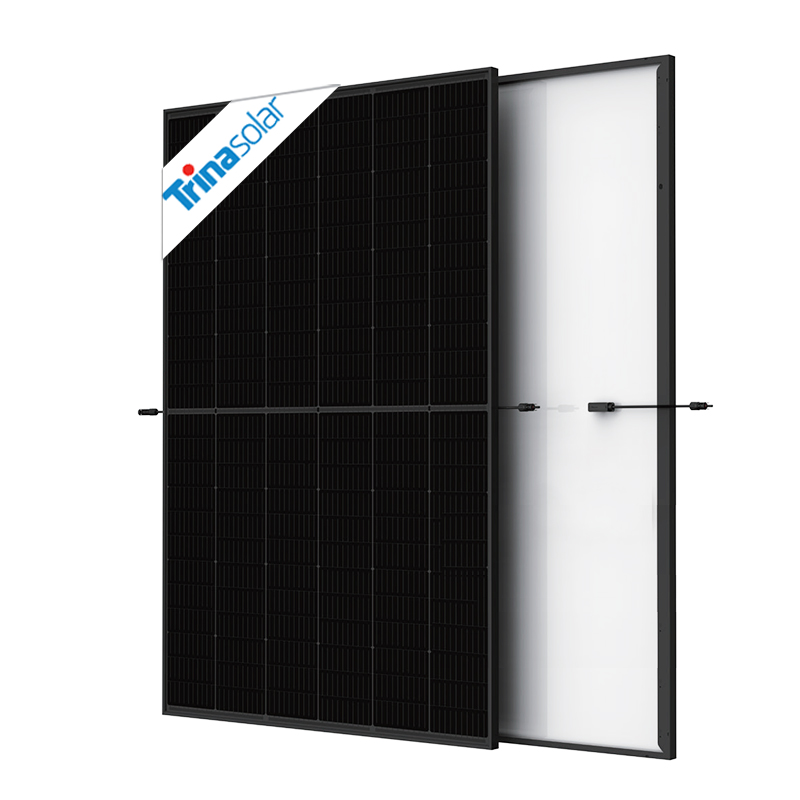

Trina Solar Panel System

Trina Solar Panel System Product Advantages

1.Outstanding Visual Appearance

Designed with aesthetics in mind
Excellent cell color control by dedicated cell blackening treatment and machine selection.
Thinner wires that appear all black at a distance

2.Small in size, big on power

Small form factor. Generate a huge amount of energy even in limited space.

Up to 425W, 21.3% module efficiency with high density interconnect technology

Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
Reduce installation cost with higher powerbin and efficieny
Boost performance in warm weather lower temperature coefficient(-0.34%)and operating temperature

3.Universal solution for residential and C&L rooftops

Designed for compatibility with existing mainstream optimizers , inverters and mounting systems
Perfect size and low weight. Easy for handling.Economy for transporting
Diverse installation solutions.Flexible for system deployment

4.High Reliability

15 year product warranty
25 year performance warranty with lowest degradation
Minimized micro-cracks with innovative non-destructive cutting technology
Ensured PID resistance through cell process and module material control.
Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load

Trina Solar Panel System Product parameters

Product range:405-425w

Input function range: 590-615Wp

Single crystal PERC module: 120 pieces (6×10+6×10)

Maximum voltage system: 1500VDC(IEC)

1500VDC(UL)

Maximum conversion efficiency: 21.7%

Maximum power output:425W

Positive power tolerance:0~+5W

Maximum efficiency:21.3%

Component size: 1762×1134×30mm

First year attenuation: 2%

Annual attenuation: 0.55%

Work temperature: -40°C~+85°C

Frame type: 30mm(1.18 inches), Anodized Aluminum Alloy

Connector type: MC4 EV02/TS4*

Carton quantity: 36 pieces

Carton size: (LxWxH): 1320×1120×2310

Gross weight: 1035kg

Manufacturer: Vertex

Scope of application: commercial and household

Warranty policy: 25 years

Photovoltaic installation tips

1. Basic knowledge: Before installing photovoltaics, installers should have a basic understanding of the concept, principles, system composition, and types of solar panels.

2. Site survey: Before installing solar panels, a thorough survey of the installation site should be conducted to check the building structure, installation location, and weather conditions, to determine the type, quantity, and placement of the solar panels.

3. Material preparation: Before installing solar panels, materials such as solar panels, inverters, wires, brackets, and screws should be prepared, to ensure that installation goes smoothly.

4. Installation location: Installers should select a location with ample sunlight and minimal shade to avoid installing solar panels in areas with tree shade or high-rise building shadows, which can affect photovoltaic panel efficiency.

5. Installation angle: The installation angle of photovoltaic panels is an important factor that affects their efficiency. The optimal angle varies based on location and season, so installers need to determine the appropriate angle for each site.

6. Bracket fixation: The bracket is the crucial link between the solar panel and the foundation, so installers need to ensure the bracket is fixed firmly and stably to avoid affecting the solar panel.

7. Wiring connections: Proper wiring connections are critical in photovoltaic systems, especially for large-scale systems with multiple parallel circuits that require safe and reliable connections.

8. Regular maintenance: To fully utilize the electricity generating capacity of solar panels, regular checks and maintenance of the panels, inverters, brackets, and other components are necessary to detect and resolve issues in a timely manner and avoid reducing power generation efficiency.

Panel Color	Black
