JinKo solar panels

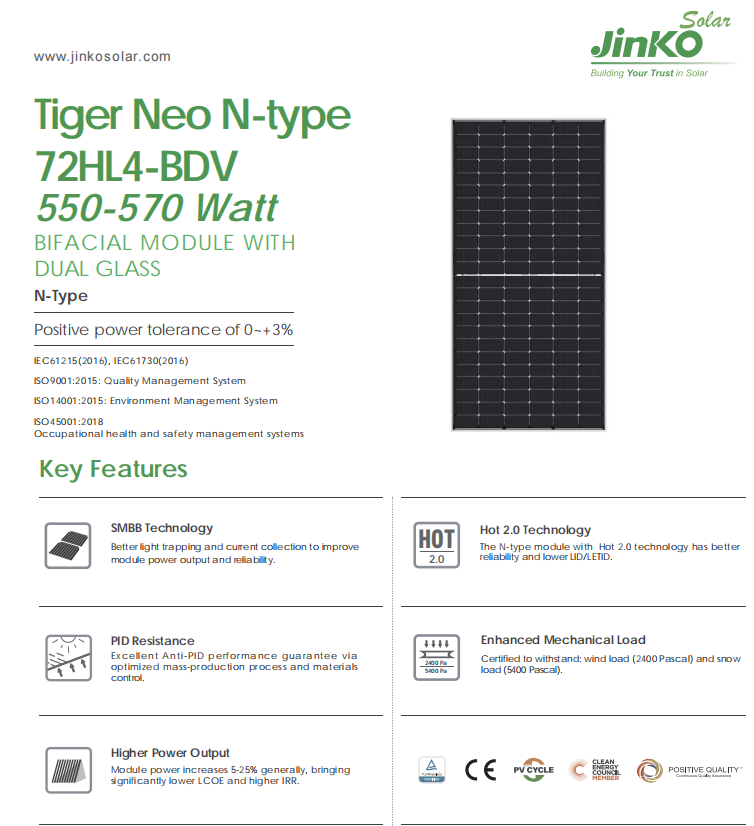

JinKo solar panels Product Advantages

SMBB Technology

Better light trapping and current collection to improve module power output and reliability.

Hot 2.0 Technology

The N-type module with Hot 2.0 technology has better reliability and lower UD/LETID.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Enhanced Mechanical Load

Certified to with stand: wind load (2400 Pascal) and snow load (5400 Pascal).

Higher Power Output

Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.

JinKo solar panels Product parameters

Input function range: 414-570Wp

Single crystal PERC module: 120 pieces (6×10+6×10)

Maximum voltage system: 1500VDC

Maximum conversion efficiency: 21.7%

Component size: 2278×1134×30mm

First year attenuation: 1%

Annual attenuation: 0.4%

Work temperature: -40°C~+85°C

Frame type: Anodized Aluminum Alloy

Connector type: MC4-EVO2/QC4.10-35

Carton size: (LxWxH): 1320×1120×2310

Carton weight: 1035kg

Manufacturer: JinKo

Scope of application: commercial and household

Warranty policy: 30 years

Photovoltaic installation tips

1. Basic knowledge: Before installing photovoltaics, installers should have a basic understanding of the concept, principles, system composition, and types of solar panels.

2. Site survey: Before installing solar panels, a thorough survey of the installation site should be conducted to check the building structure, installation location, and weather conditions, to determine the type, quantity, and placement of the solar panels.

3. Material preparation: Before installing solar panels, materials such as solar panels, inverters, wires, brackets, and screws should be prepared, to ensure that installation goes smoothly.

4. Installation location: Installers should select a location with ample sunlight and minimal shade to avoid installing solar panels in areas with tree shade or high-rise building shadows, which can affect photovoltaic panel efficiency.

5. Installation angle: The installation angle of photovoltaic panels is an important factor that affects their efficiency. The optimal angle varies based on location and season, so installers need to determine the appropriate angle for each site.

6. Bracket fixation: The bracket is the crucial link between the solar panel and the foundation, so installers need to ensure the bracket is fixed firmly and stably to avoid affecting the solar panel.

7. Wiring connections: Proper wiring connections are critical in photovoltaic systems, especially for large-scale systems with multiple parallel circuits that require safe and reliable connections.

8. Regular maintenance: To fully utilize the electricity generating capacity of solar panels, regular checks and maintenance of the panels, inverters, brackets, and other components are necessary to detect and resolve issues in a timely manner and avoid reducing power generation efficiency.

Panel Color	Black
