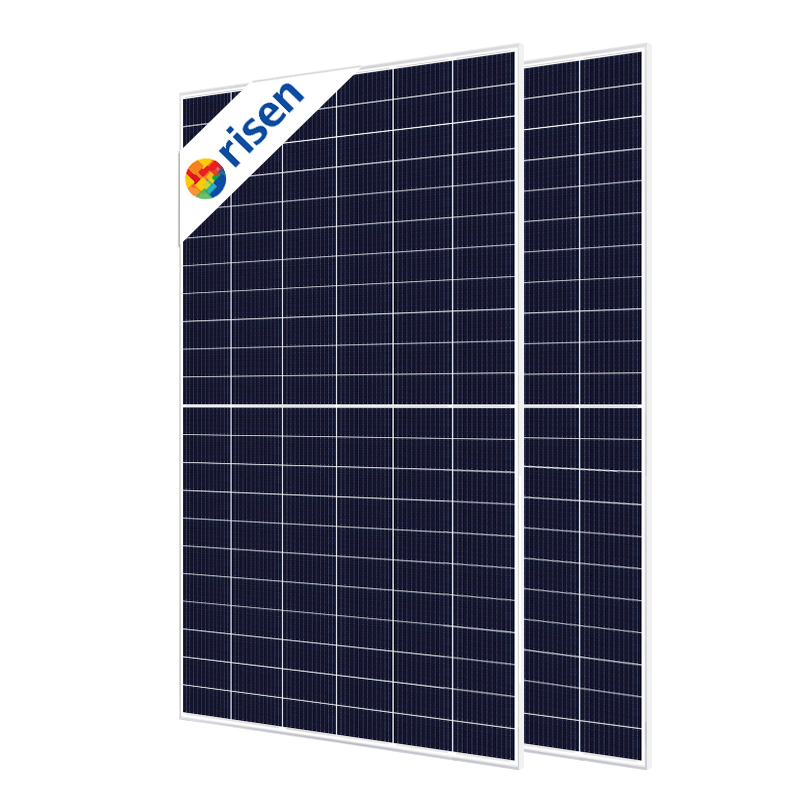

risen solar panels 590-615Wp

Product Advantages

Adopt non-destructive cutting technology and main grid technology to improve the reliability of the components for long-term use. Slice packaging technology, optimized circuit design component power generation increased by 10%.

Low voltage, high load capacity, can obtain the maximum string power, effectively reduce the system cost. Lower BOS cost and LCOE, power up to 600Wp+

risen solar panels Product parameters

Input function range: 590-615Wp

Single crystal PERC module: 120 pieces (6×10+6×10)

Maximum voltage system: 1500VDC

Maximum conversion efficiency: 21.7%

Component size: 2172×1303×35mm

First year attenuation: 2%

Annual attenuation: 0.55%

Work temperature: -40°C~+85°C

Frame type: High-strength alloy steel frame module/aluminum frame module

Connector type: Risen Shuangyu PV-SY02, IP68

Carton quantity: 31 pieces

Carton size: (LxWxH): 1320×1120×2310

gross weight: 1035kg

Manufacturer: risen

Scope of application: commercial and household

Warranty policy: 25 years

Photovoltaic installation tips

1. Basic knowledge: Before installing photovoltaics, installers should have a basic understanding of the concept, principles, system composition, and types of risen 590-615Wp solar panels .

2. Site survey: Before installing solar panels, a thorough survey of the installation site should be conducted to check the building structure, installation location, and weather conditions, to determine the type, quantity, and placement of the solar panels.

3. Material preparation: Before installing solar panels, materials such as solar panels, inverters, wires, brackets, and screws should be prepared, to ensure that installation goes smoothly.

4. Installation location: Installers should select a location with ample sunlight and minimal shade to avoid installing solar panels in areas with tree shade or high-rise building shadows, which can affect photovoltaic panel efficiency.

5. Installation angle: The installation angle of photovoltaic panels is an important factor that affects their efficiency. The optimal angle varies based on location and season, so installers need to determine the appropriate angle for each site.

6. Bracket fixation: The bracket is the crucial link between the solar panel and the foundation, so installers need to ensure the bracket is fixed firmly and stably to avoid affecting the solar panel.

7. Wiring connections: Proper wiring connections are critical in photovoltaic systems, especially for large-scale systems with multiple parallel circuits that require safe and reliable connections.

8. Regular maintenance: To fully utilize the electricity generating capacity of solar panels, regular checks and maintenance of the panels, inverters, brackets, and other components are necessary to detect and resolve issues in a timely manner and avoid reducing power generation efficiency.
