Portable EV car chargers Products Details

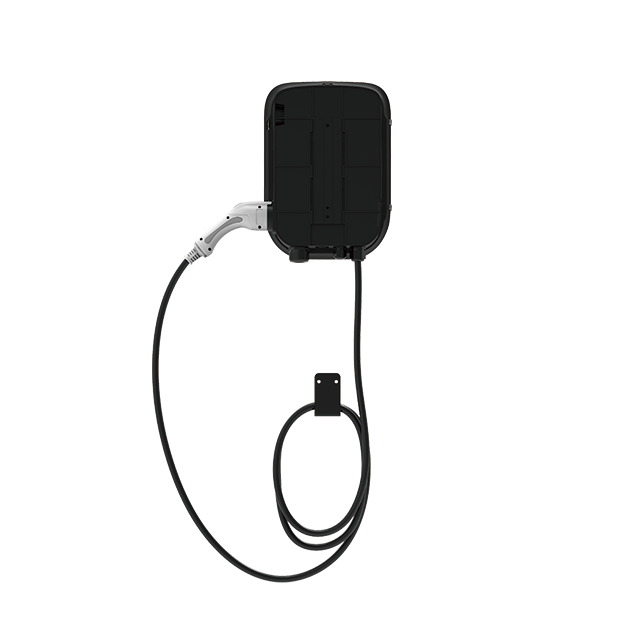

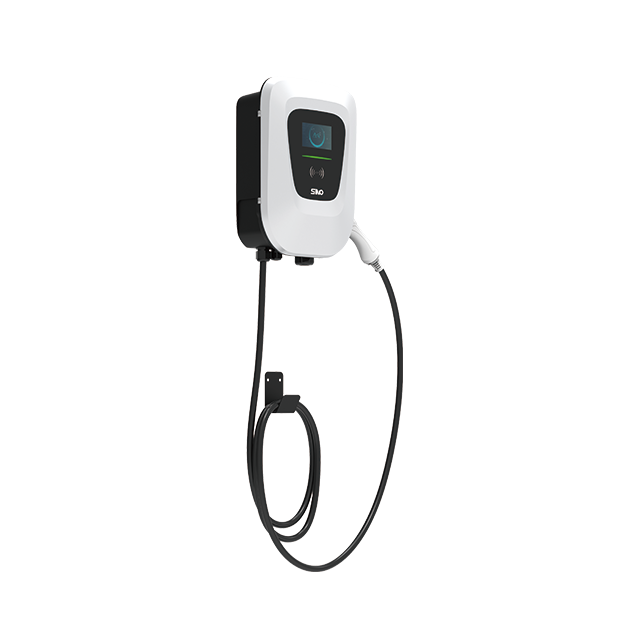

Portable EV car chargers
|
Power Specifications
|
|
|
Input Connection
|
3-Phase : 3P+N+PE( Single-Phase Optional: P+N+PE )
|
|
Input Voltage
|
400Vac ±10% （ 230Vac±10% Optional ）
|
|
Frequency
|
50Hz or 60Hz
|
|
Output Voltage
|
400Vac ±10% （ 230Vac±10% Optional ）
|
|
Rated Power
|

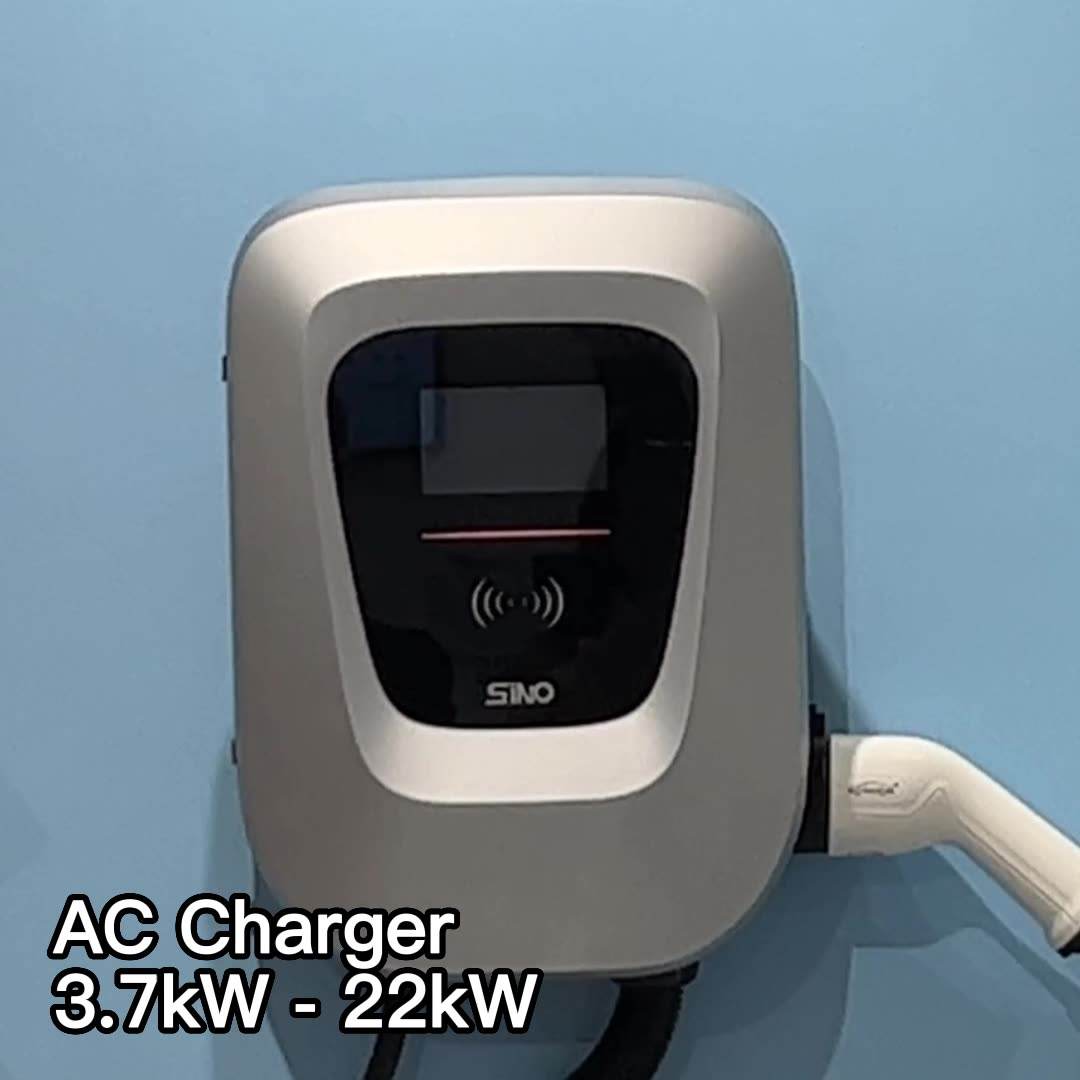

11kW - 22kW (3.7kW - 7.4kW Optional)
|
|
User Interface & Control
|
|
|
LCD Display
|
4.3" Color Touch Screen( Optional )
|
|
LED Indicator
|
Green/Blue/Red
|
|
Charging Interface
|

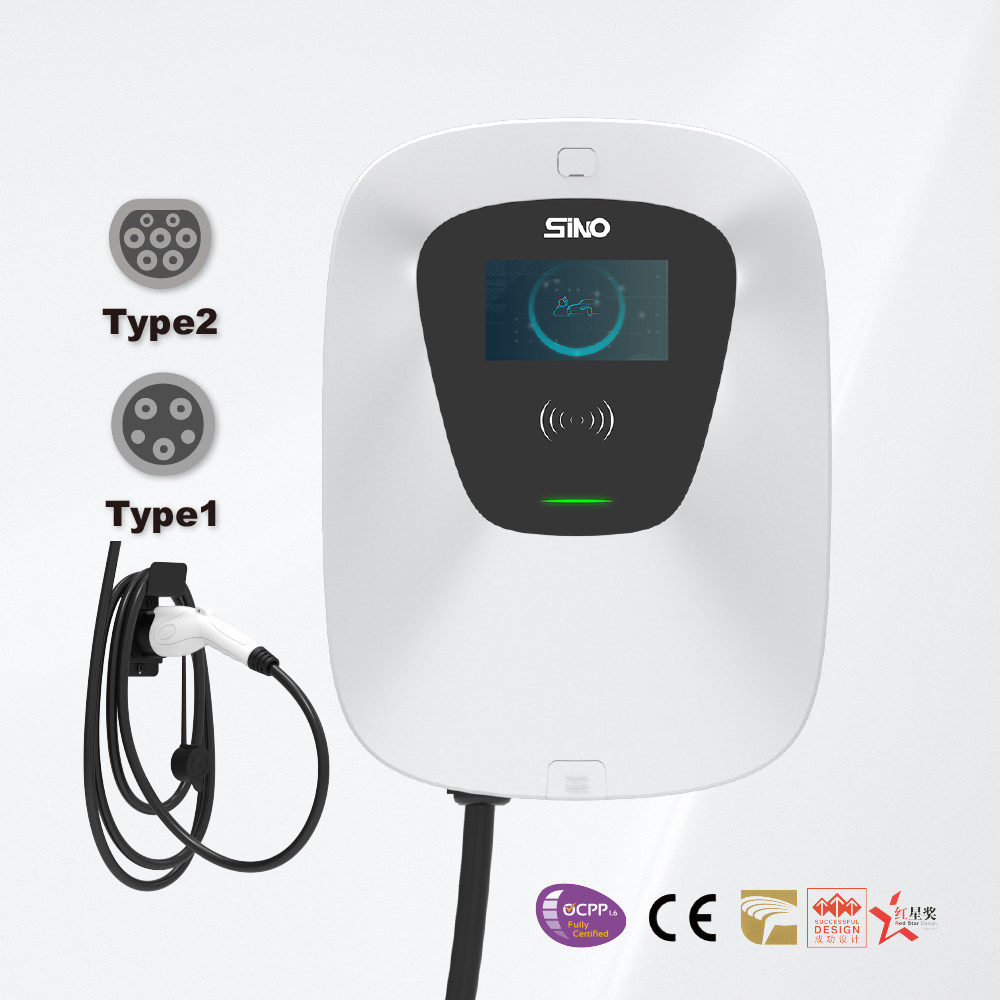

IEC 62196-2 Type 2 Plug (SAEJ1772 Type 1 Plug Optional)
|
|
Energy Measuring
|
MID Meter
|
|
Communication
|
|
|
Backend
|

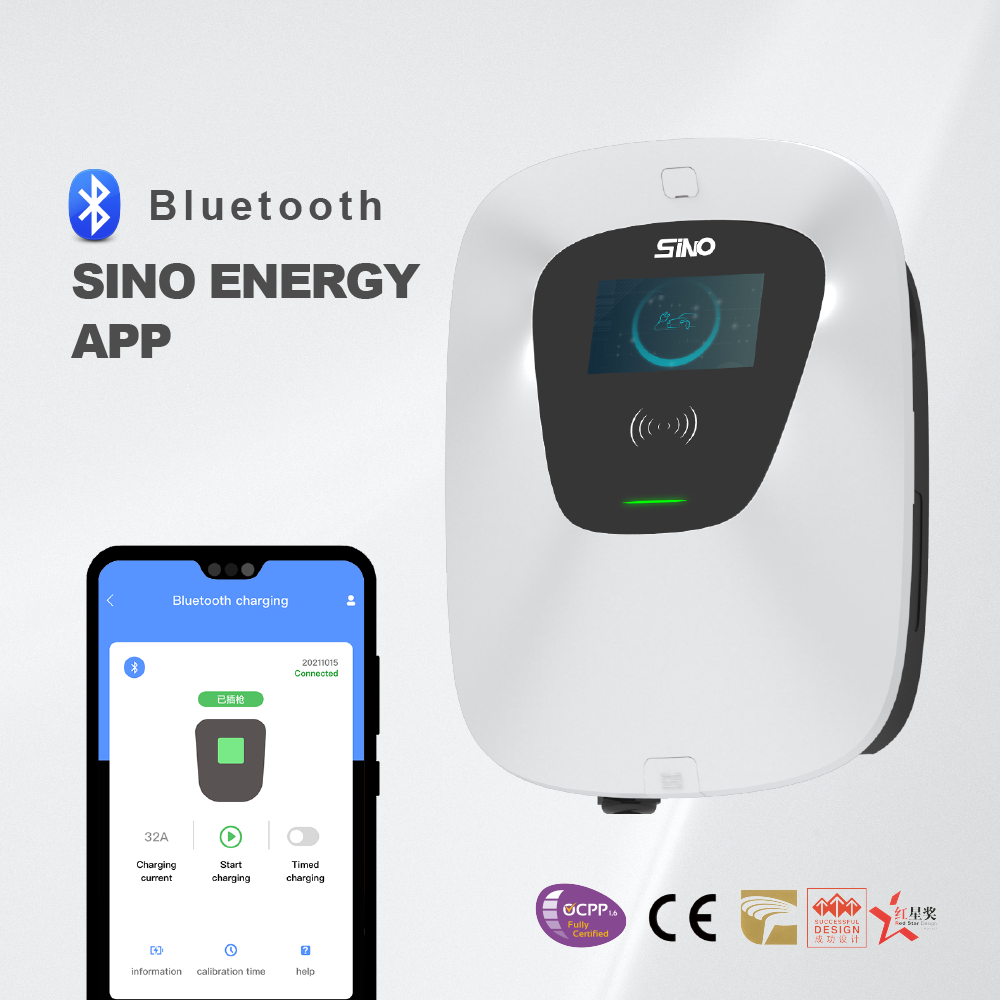

Bluetooth / Wi-Fi / Ethernet (4G Optional )
|
|
Backend Protocol
|
OCPP 1.6 JSON ( OCPP2.0.1 )
|
|
Protection
|
|
|
Residual Current Device
|
RCD Type A 30mA+DC 6mA
|
|
Electrical Protection
|
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning
Protection, Ground Fault, Surge Protection |
|
Environmental
|
|
|
Operating Temperature
|
-30℃—+55℃
|
|
Storage Temperature
|
-40℃—+85℃
|
|
Operating Humidity
|
Max. 90% RH, Non-Condensing
|
|
Operating Altitude
|
≤ 2000m
|
|
IP, IK Level
|
IP55, IK08
|
|
Cooling Method
|
Natural Cooling
|
|
Mechanical
|
|
|
Product Dimension
|
300mm*154mm*420mm( W*D*H )
|
|
Package Dimension
|
380mm*320mm*590mm( W*D*H )
|
|
Weight
|
7.5kg( Net ) / 9kg( Gross )
|
|
Mounting
|

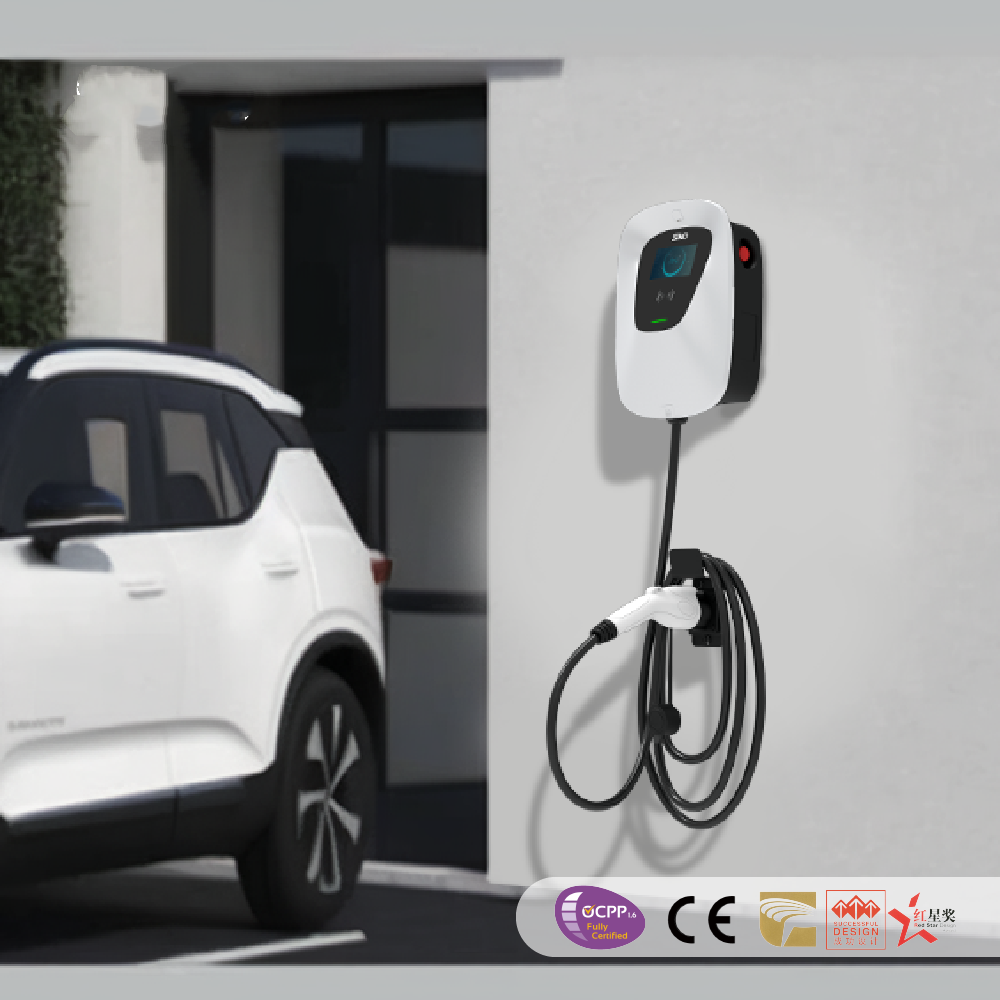

Wall-mount and Stand-mount
|
|
Certifications
|
|
|
Certifificate
|
IEC 61851-1, IEC 62196-1, IE62196-2,SAEJ1772-2017
|
|
Safety
|
CE, TUV
|
Advantages of Portable EV car chargers
As more and more people switch to electric vehicles, household charging stations are becoming increasingly popular. Here are some of the advantages of a home electric car charging station:
1. Convenience: One of the primary benefits of having a home charging station is convenience. You can charge your car overnight and wake up to a full battery every morning. You never have to worry about finding a public charging station while you’re out running errands.
2. Cost-effective: Over time, a home charging station can save you money compared to public charging stations, especially if you have a time-of-use electricity plan. Homeowners also have the option of installing solar panels, reducing their electricity bills even further.
3. Efficiency: Charging your car at home is more efficient than charging at a public station. When charging at home, the power comes directly from your electric panel, so there is no energy loss due to long-distance transmission.
4. Customizable: When you install a home charging station, you can choose the charger that best fits your vehicle’s needs. Some chargers are designed for faster charging, while others are designed for slower, more energy-efficient charging.
5. Increased home value: Installing a home charging station can increase the value of your home. Many homebuyers are looking for homes with charging stations, so adding one can be a smart investment.
In conclusion, a home electric car charging station offers convenience, cost-effectiveness, efficiency, customization, and increased home value. If you’re considering purchasing an electric vehicle, a home charging station is an investment that can pay off in the long run.
