Product details
APP Control:
1.Setting Current: you can set the current when the power grid is overload.
2.Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
3. Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an
appointment of the charging by APP, it is very convenient.
4.Record: you can check the charging record by APP in any time.
5. The best Choice for home market
Load balance management：
1.Restricting the total charging load protects the local grid
2.Sharing the charging load cuts costs for the required electricity connection
3.Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
Specification:
1.Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back
cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
2.OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
3.3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time

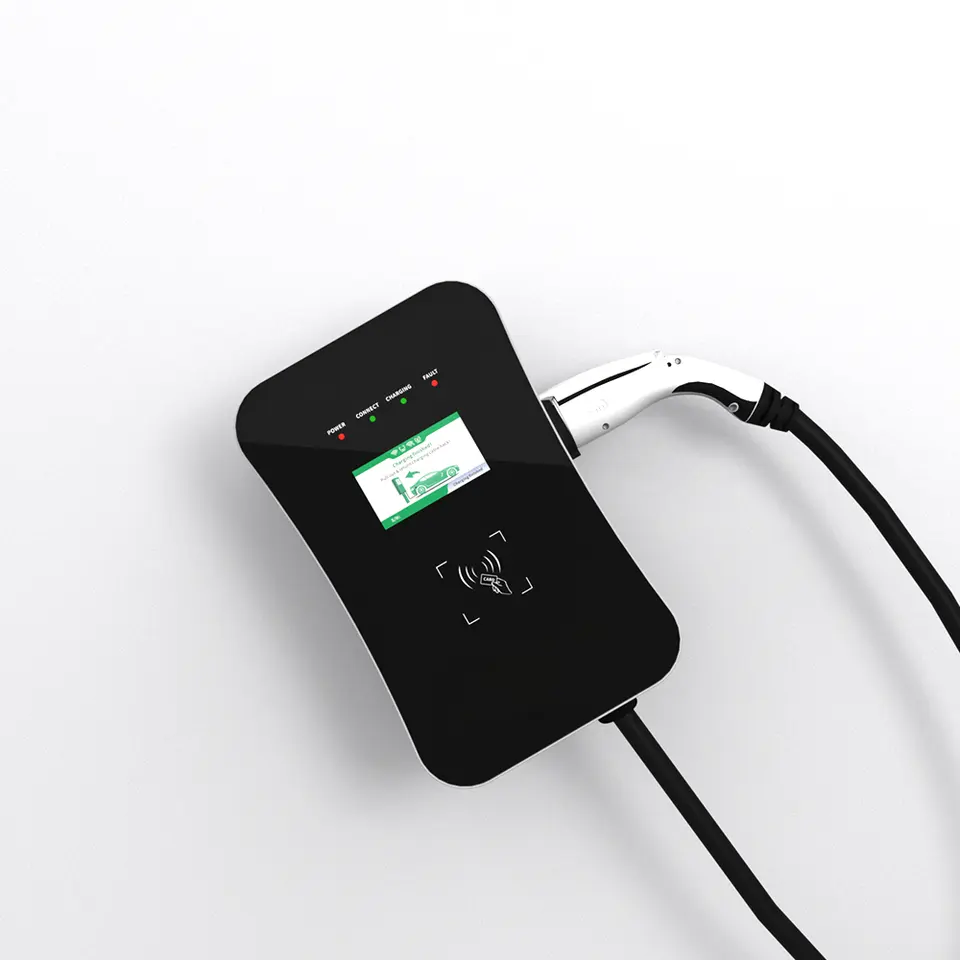

4. Versatile Installation wall mount or pedestal applications
Protection:
1.RCD Type B inside，it is more safe than Type A.
2. High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage
Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection,
Over-temp Protection, Surge Protection and etc.
Product Specification
|
Power Specification
|
|||
|
EU Standard
|
|||
|
Charging Connector Type
|
IEC 62196-2 (Type 2)
|
||
|
AC Power Input Rating
|
1 Phase
|
3 Phase
|
|
|
230V±15%
|
380V±15%
|
||
|
AC Power Output Rating
|
3.5kw/16A
|
11kw/16A
|
|
|
7kw/32A
|
22kw/32A
|
||
|
43kw/63A
|
|||
|
Frequency Rating
|
50/60 Hz
|
||
|
User Interface & Control
|
|||
|
Emergency Stop Button
|
Yes
|
Plug-and-Charging
|
Yes
|
|
RFID Card Charging
|
Yes
|
App Charging
|
Yes
|
|
Ethernet Interface
|
Yes
|
Wifi Function
|
Yes
|
|
OCPP Protocol
|
OCPP 1.6
|
4.3-inch LCD Screen
|
Optional
|
|
Protection
|
|||
|
Over Voltage Protection
|
Yes
|
Under Voltage Protection
|
Yes
|
|
Over Load Protection
|
Yes
|
Short Circuit Protection
|
Yes
|
|
Earth Leakage Protection
|
Yes
|
Ground Protection
|
Yes
|
|
Over-temp Protection
|
Yes
|
Surge Protection
|
Yes
|
|
RCD
|
Type B
|
||
|
Environmental
|
|||
|
Storage Temperature
|
-40 ~ 75℃
|
Operating Temperature
|
-30 ~ 55℃
|
|
Operating Humidity
|
Up to 95%, non-condensing
|
Altitude
|
≤2000m
|
|
Cooling Method
|
Natural Cooling
|
||
|

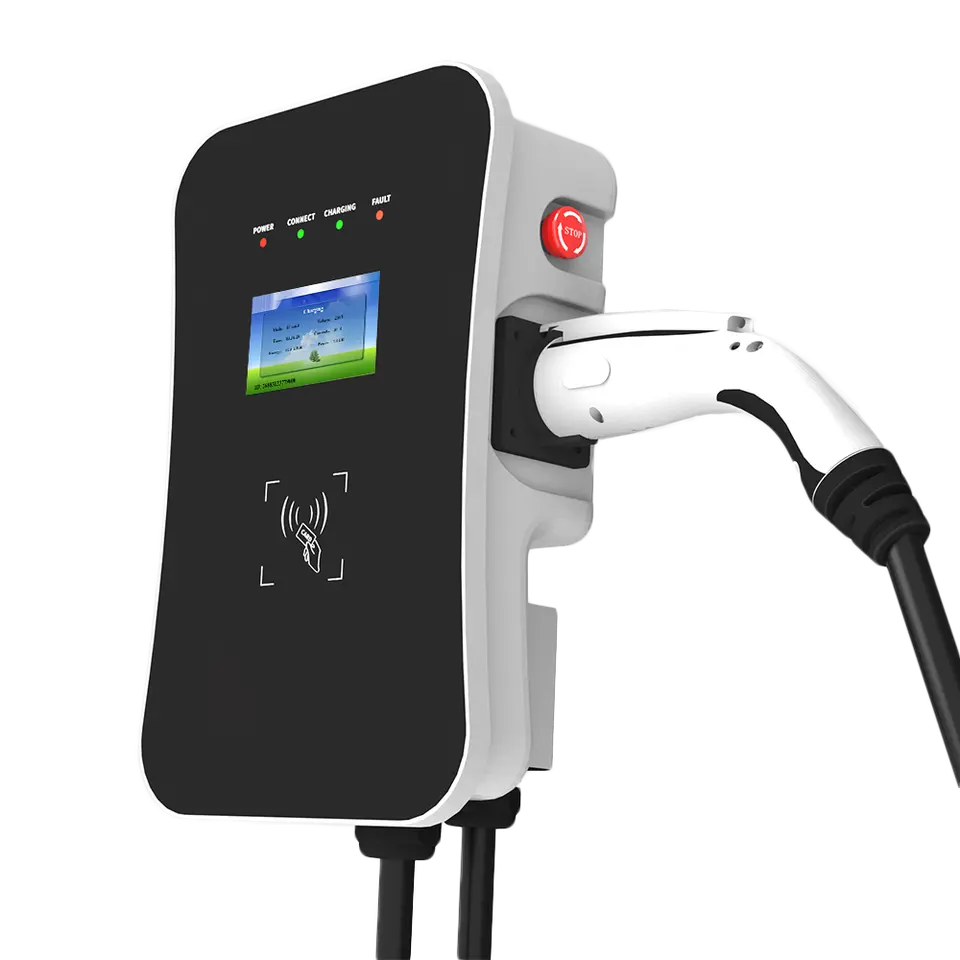

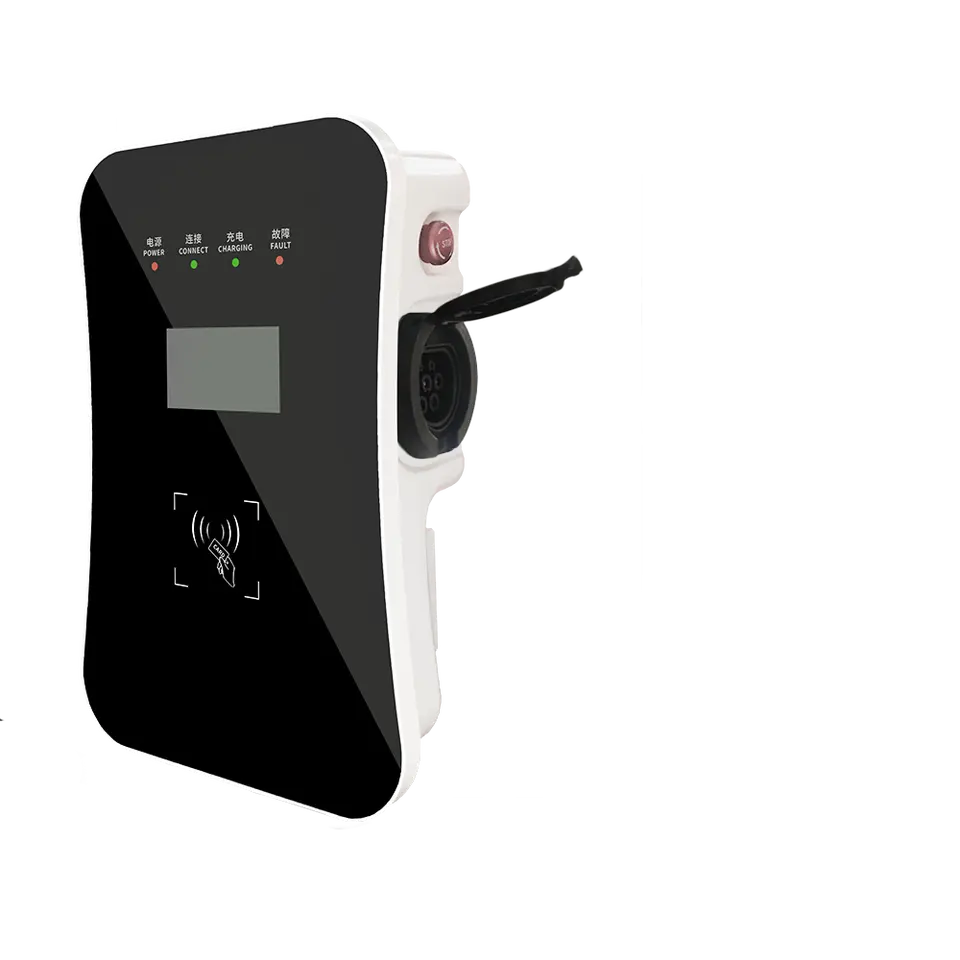

M3P Wallbox Mechanical
|
|||
|
IP Code
|
IP54
|
Dimension(H×W×D,mm)
|
410×260×164
|
|
Weight
|
12kg
|

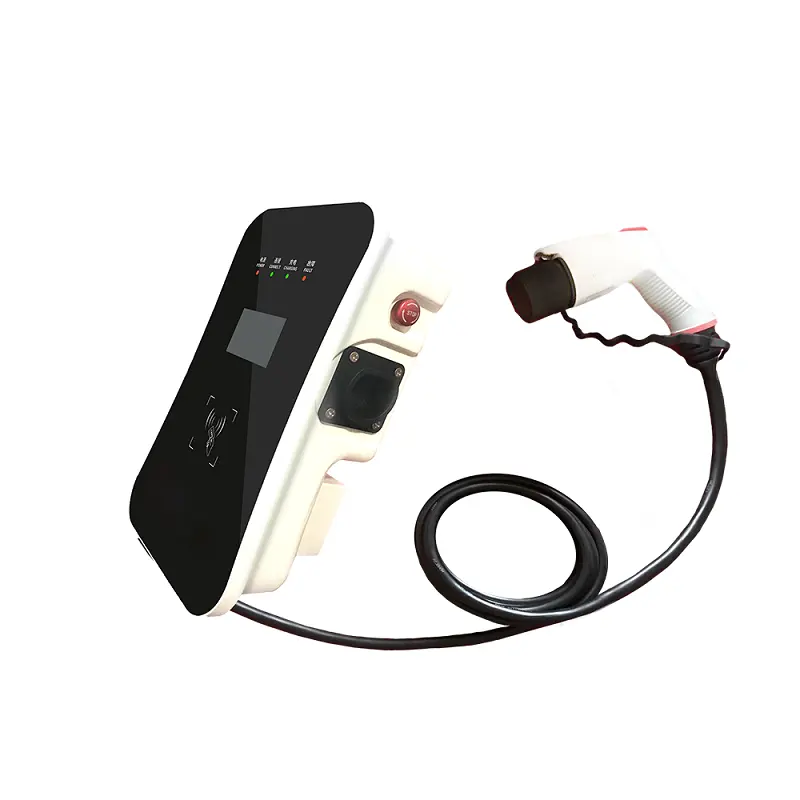

Charging Cable Length
|
5m or Customize
|
|
Enclosure Material
|
Front-panel: Tempered Glass, Back-cover: Plate Metal
|
||
|

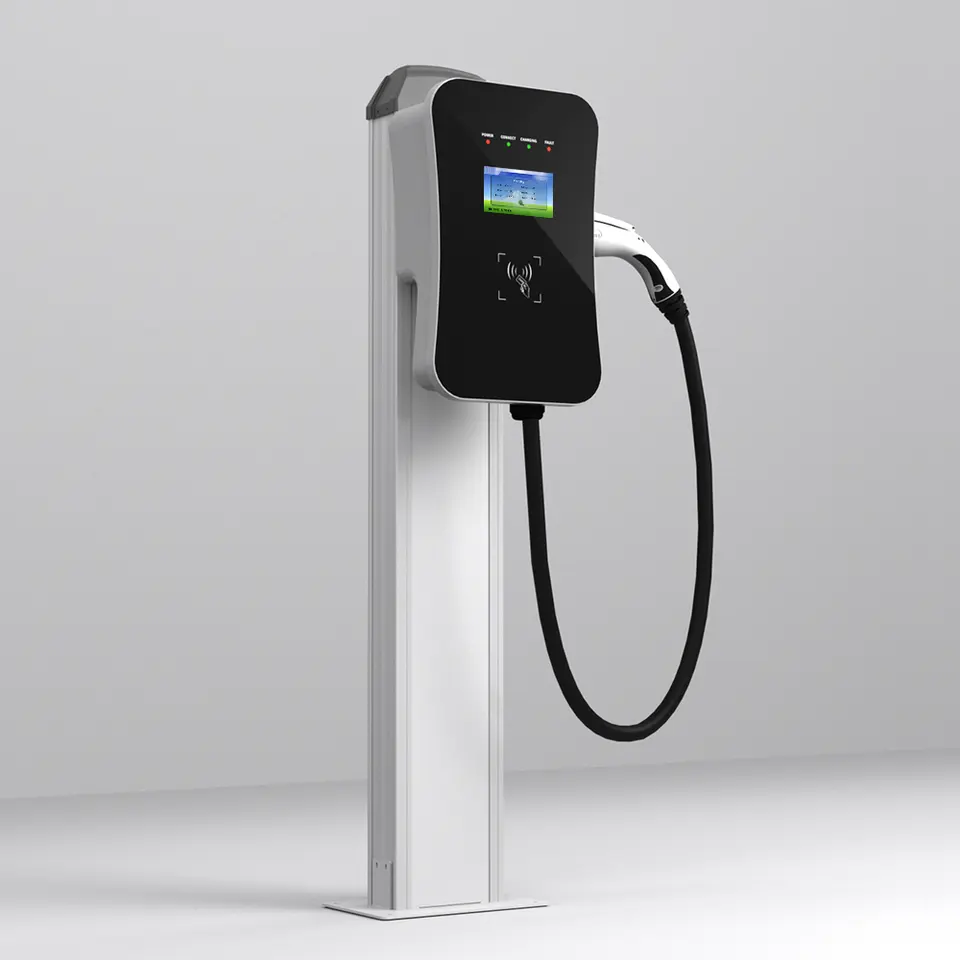

M3T Mounting Pole(Optional)
|
|||
|
Dimension(H×W×D,mm)
|
1400×200×100
|
Weight
|
＜8kg
|
|
Enclosure Material
|
Metal
|
||
Advantages of Electric Car Charging Stations
As more and more people switch to electric vehicles, household charging stations are becoming increasingly popular. Here are some of the advantages of a home electric car charging station:
1. Convenience: One of the primary benefits of having a home charging station is convenience. You can charge your car overnight and wake up to a full battery every morning. You never have to worry about finding a public charging station while you’re out running errands.
2. Cost-effective: Over time, a home charging station can save you money compared to public charging stations, especially if you have a time-of-use electricity plan. Homeowners also have the option of installing solar panels, reducing their electricity bills even further.
3. Efficiency: Charging your car at home is more efficient than charging at a public station. When charging at home, the power comes directly from your electric panel, so there is no energy loss due to long-distance transmission.
4. Customizable: When you install a home charging station, you can choose the charger that best fits your vehicle’s needs. Some chargers are designed for faster charging, while others are designed for slower, more energy-efficient charging.
5. Increased home value: Installing a home charging station can increase the value of your home. Many homebuyers are looking for homes with charging stations, so adding one can be a smart investment.
In conclusion, a home electric car charging station offers convenience, cost-effectiveness, efficiency, customization, and increased home value. If you’re considering purchasing an electric vehicle, a home charging station is an investment that can pay off in the long run.
