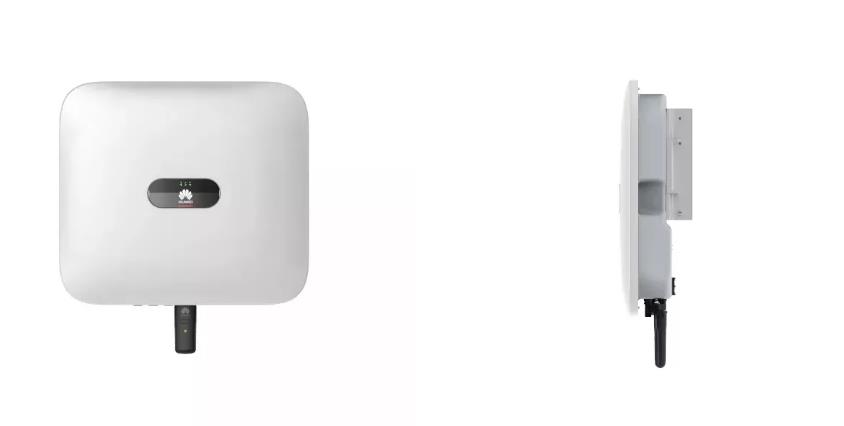

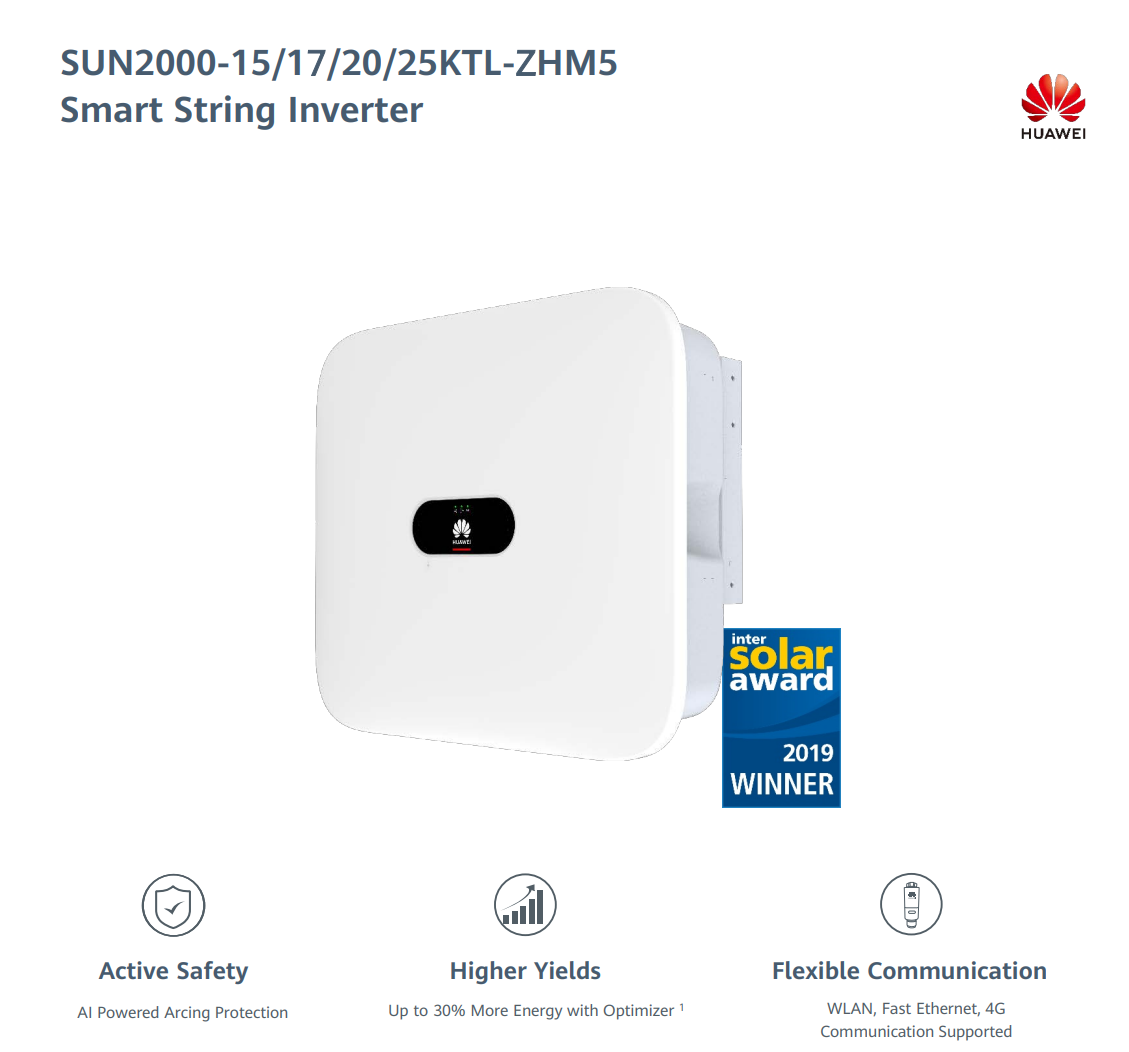

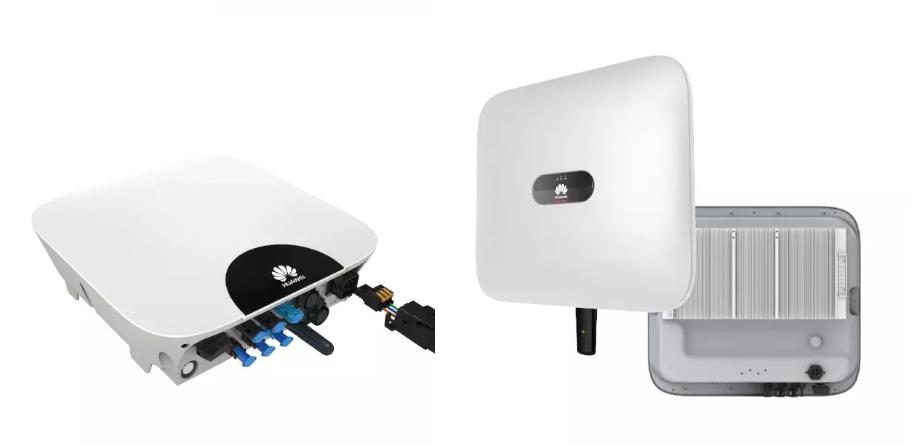

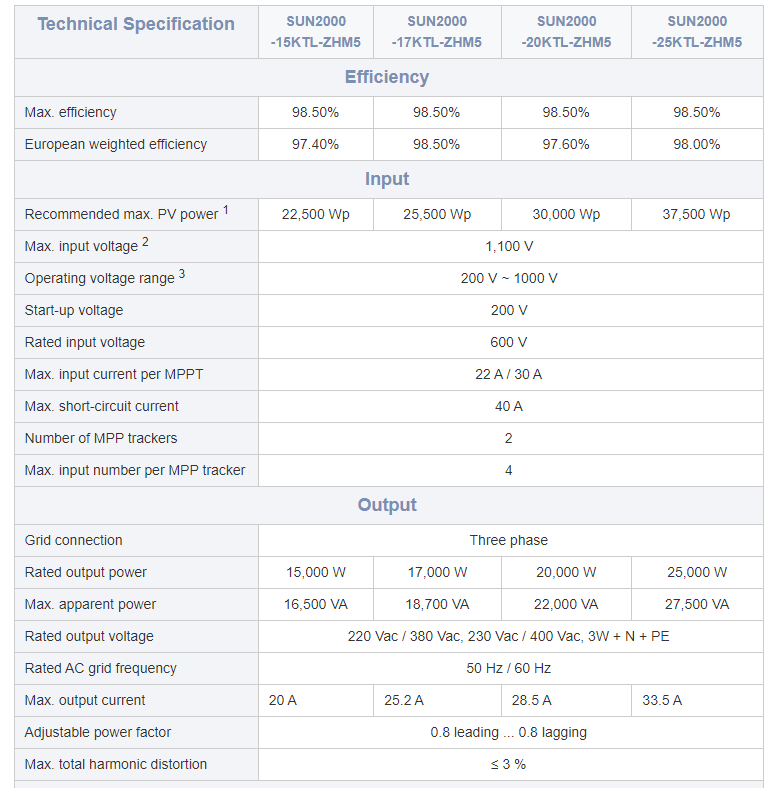

Huawei SUN2000-15/17/20/25KTL-ZHM5 solar inverter Technical Specification
|
Features & Protections
|
||||
|
Input-side disconnection device
|
Yes
|
|||
|
Anti-islanding protection
|
Yes
|
|||
|
AC over-current protection
|
Yes
|
|||
|
AC short-circuit protection
|
Yes
|
|||
|
AC over-voltage protection
|
Yes
|
|||
|
DC reverse-polarity protection
|
Yes
|
|||
|
DC surge protection
|
TYPE II
|
|||
|
AC surge protection
|
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
|
|||
|
Residual current monitoring unit
|
Yes
|
|||
|
Arc fault protection
|
Yes
|
|||
|
Ripple receiver control
|
Yes
|
|||
|
Integrated PID recovery 4
|
Yes
|
|||
|
General Data
|
||||
|
Operation temperature range
|
-25 ~ +60 °C (-13 °F ~ 140 °F)
|
|||
|
Relative humidity
|
0 % RH ~ 100% RH
|
|||
|
Max. operating altitude
|
0 ～ 4,000 m (13,123 ft.) (Derating above 2000 m)
|
|||
|
Cooling
|
Natural Convection
|
|||
|
Display
|
LED Indicators; Integrated WLAN + FusionSolar App
|
|||
|
Communication
|
RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
4G / 3G / 2G via Smart Dongle-4G (Optional)
|
|||
|
Weight (with mounting plate)
|
21 kg
|
|||
|
Dimensions (W x H x D) (incl. mounting plate)
|
546 x 460 x 228 mm
|
|||
|
Degree of protection
|
IP66
|
|||
|
Optimizer Compatibility
|
||||
|
DC MBUS compatible optimizer
|
SUN2000-450W-P
|
|||
Product Description
Huawei took the lead in integrating the digital information technology accumulated over more than 30 years with photovoltaic cross-border, and launched the leading smart photovoltaic solution.
Advantages of solar inverters
The solar inverter is an important component in a solar energy system, converting the direct current (DC) produced by solar panels into alternating current (AC) that can be used by household appliances or sold back to the grid. One major advantage of solar inverters is their ability to boost the efficiency of solar panels. By converting DC to AC, solar inverters can optimize the power output of solar panels and reduce the amount of energy lost during the conversion process. Another advantage of solar inverters is their versatility. They can be installed in a variety of residential and commercial settings, and can adapt to meet the needs of different applications.
Additionally, solar inverters are low maintenance and can operate for many years with minimal servicing. They also provide a convenient way to monitor the performance of a solar energy system, allowing users to track energy production, system status, and potential faults.
Finally, solar inverters are environmentally friendly, producing zero emissions and reducing reliance on fossil fuels. In conclusion, solar inverters offer many advantages for those considering the switch to solar energy, including efficiency, versatility, low maintenance, and sustainability.
