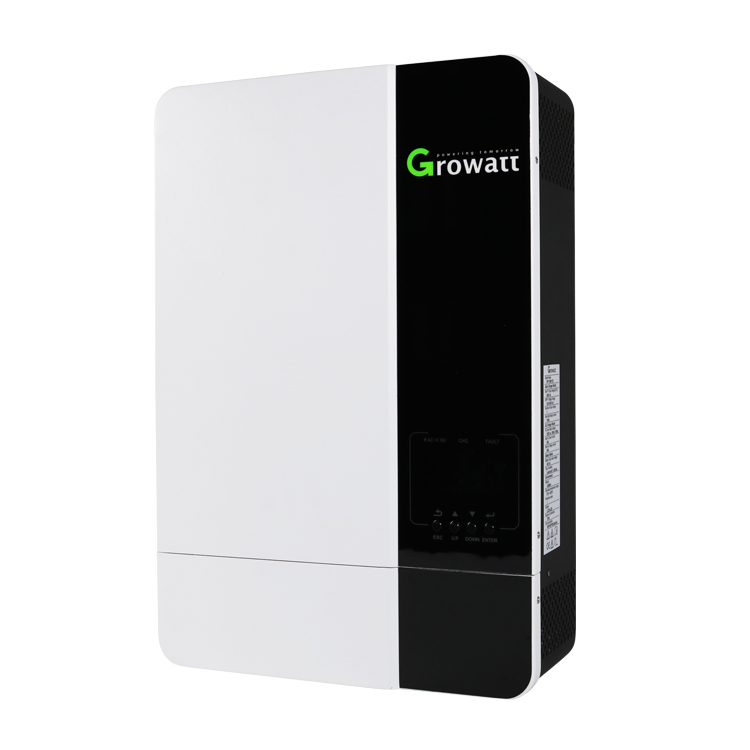

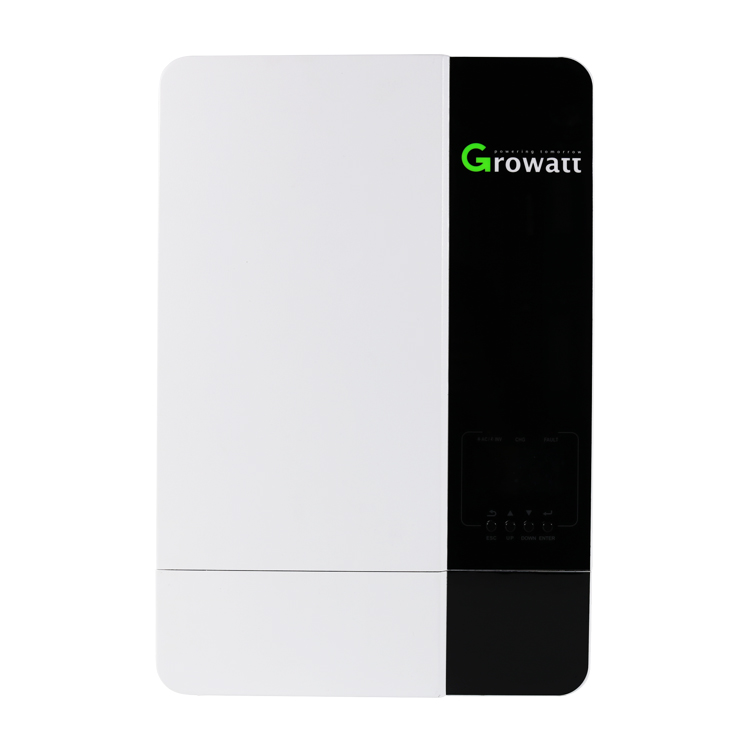

Growatt Solar Inverter SPF3500-5000ES Paramenters
|
Model number
|
SPF 3500ES
|
SPF 5000ES
|
|
Battery Voltage
|
48VDC
|
|
|
Inverter Output
|
||
|
Rated Power
|
3500VA/ 3500W
|
5000VA/ 5000W
|
|
Parallel Capability
|
Yes, 6 units
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
7000VA
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
Solar Charger
|
||
|
Maximum PV Array Power
|
4500W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
80A
|
100A
|
|
AC Charger
|
||
|
Charge Current
|
60A
|
80A
|
|
AC Input Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Physical
|
||
|

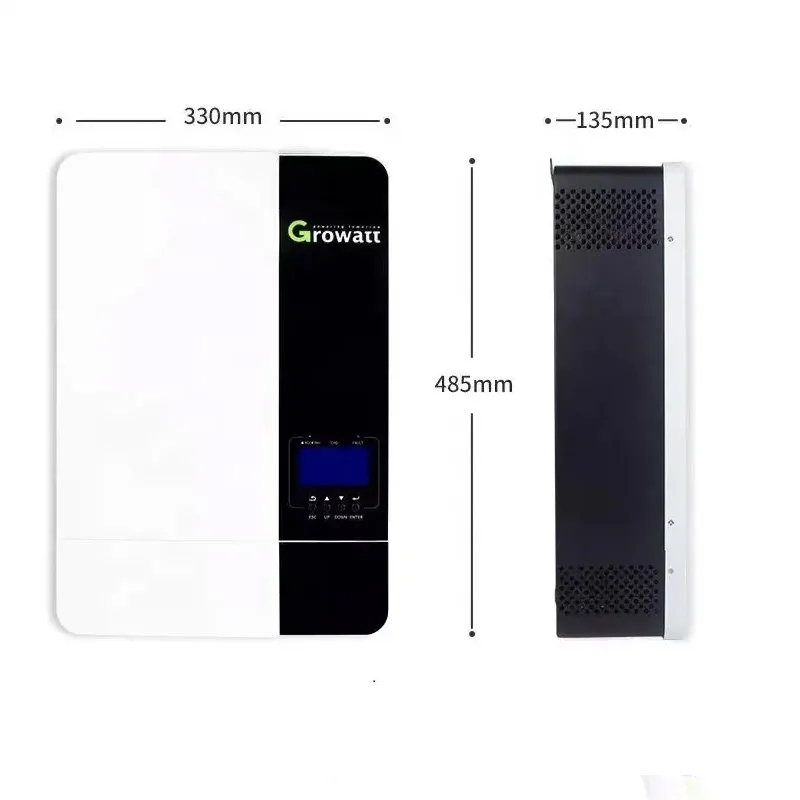

Dimension (D/W/H) in mm
|
485/330/135
|
|
|
Net Weight (kg)
|
11.5kg
|
12kg
|
|
Operating Environment
|
||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|

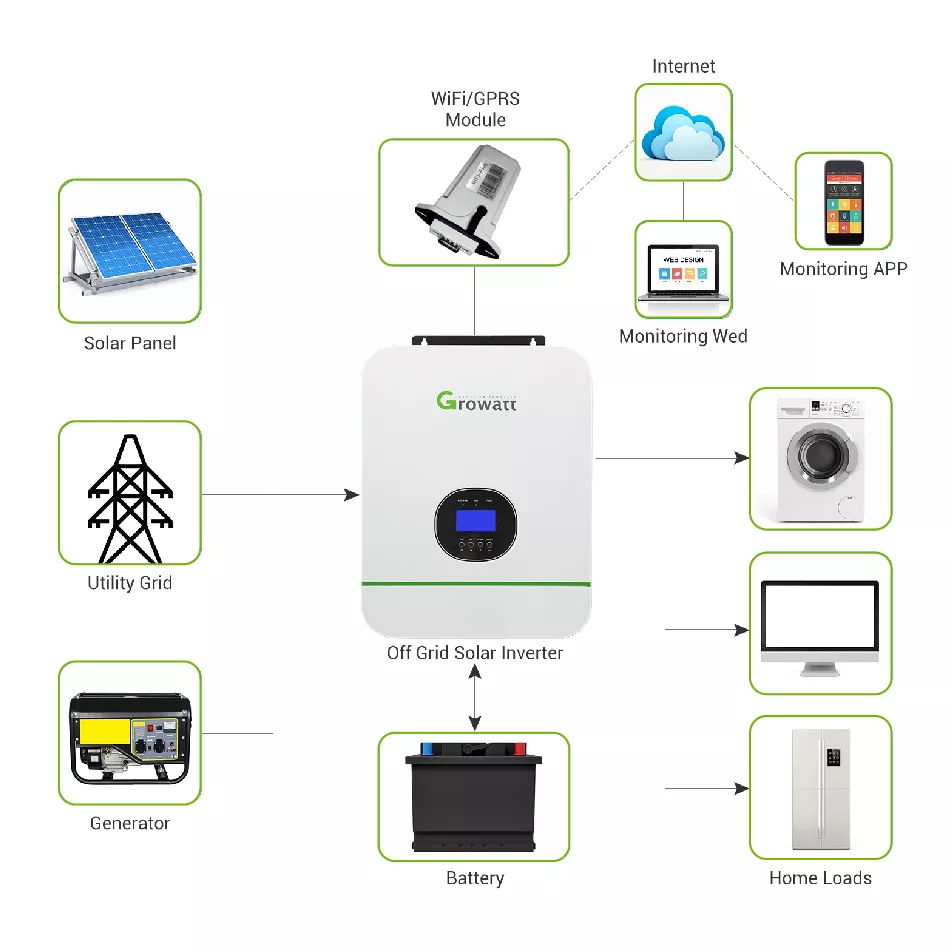

Products Description
SPF 3500~5000 ES
- lntegrated MPPT charge controller.
- Equalization charging function.
- Work with battery or without battery.
- Maximum PV input voltage up to 450VDC.
- Configurable grid or solar input priority.

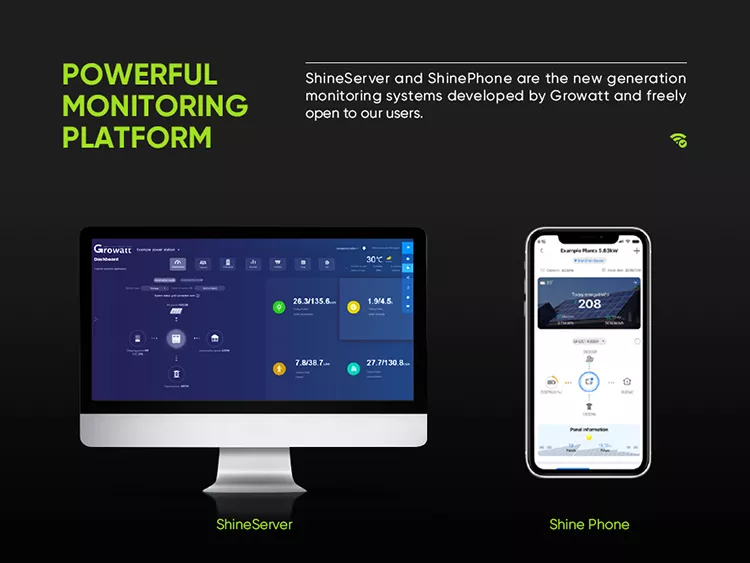

- Optional WIFl/ GPRS remote monitoring.

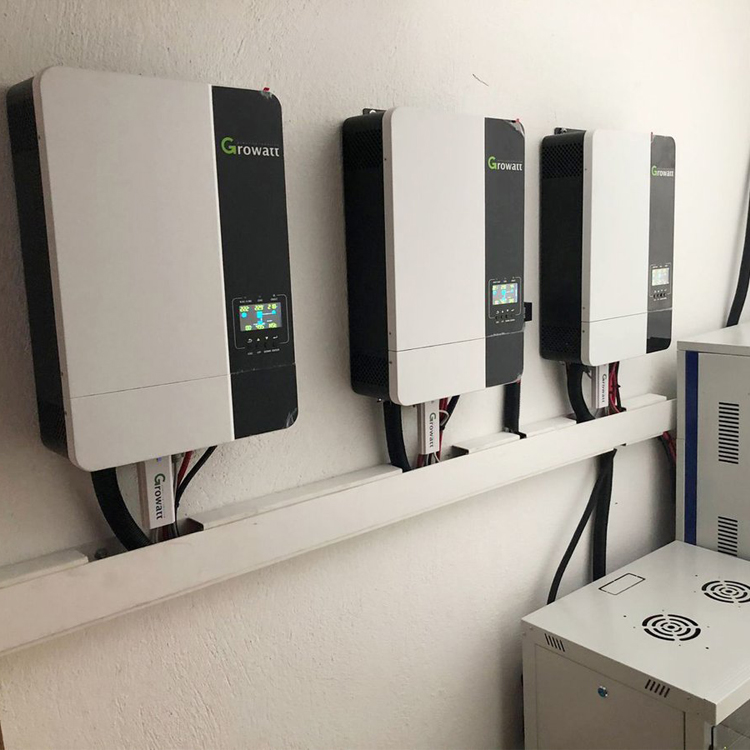

- Support parallel operation for capacity expansion up to 30kw.
- PV and Grid power the load jointly if PV energy unsufficient.
- Flexibly schedule the lnverter charging and discharging time.
Advantages of solar inverters
The solar inverter is an important component in a solar energy system, converting the direct current (DC) produced by solar panels into alternating current (AC) that can be used by household appliances or sold back to the grid. One major advantage of solar inverters is their ability to boost the efficiency of solar panels. By converting DC to AC, solar inverters can optimize the power output of solar panels and reduce the amount of energy lost during the conversion process. Another advantage of solar inverters is their versatility. They can be installed in a variety of residential and commercial settings, and can adapt to meet the needs of different applications.
Additionally, solar inverters are low maintenance and can operate for many years with minimal servicing. They also provide a convenient way to monitor the performance of a solar energy system, allowing users to track energy production, system status, and potential faults.
Finally, solar inverters are environmentally friendly, producing zero emissions and reducing reliance on fossil fuels. In conclusion, solar inverters offer many advantages for those considering the switch to solar energy, including efficiency, versatility, low maintenance, and sustainability.
