Product Description

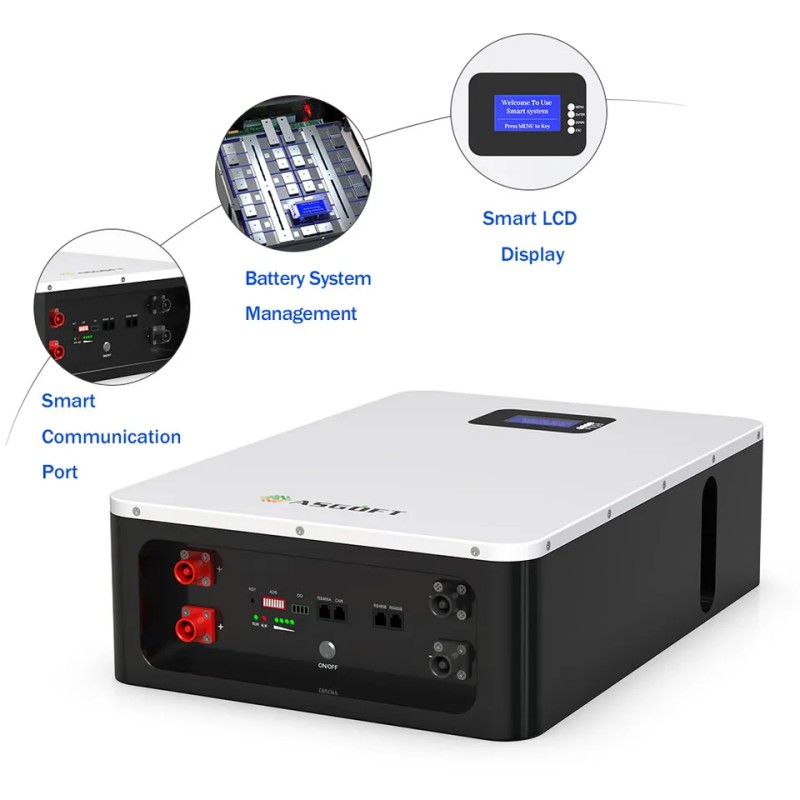

Smart LCD Display
Using color LCD screen, color LCD material, strong light display is clear, soft display at night, intelligent real-time display of battery voltage, battery status, etc., to check battery status at any time.

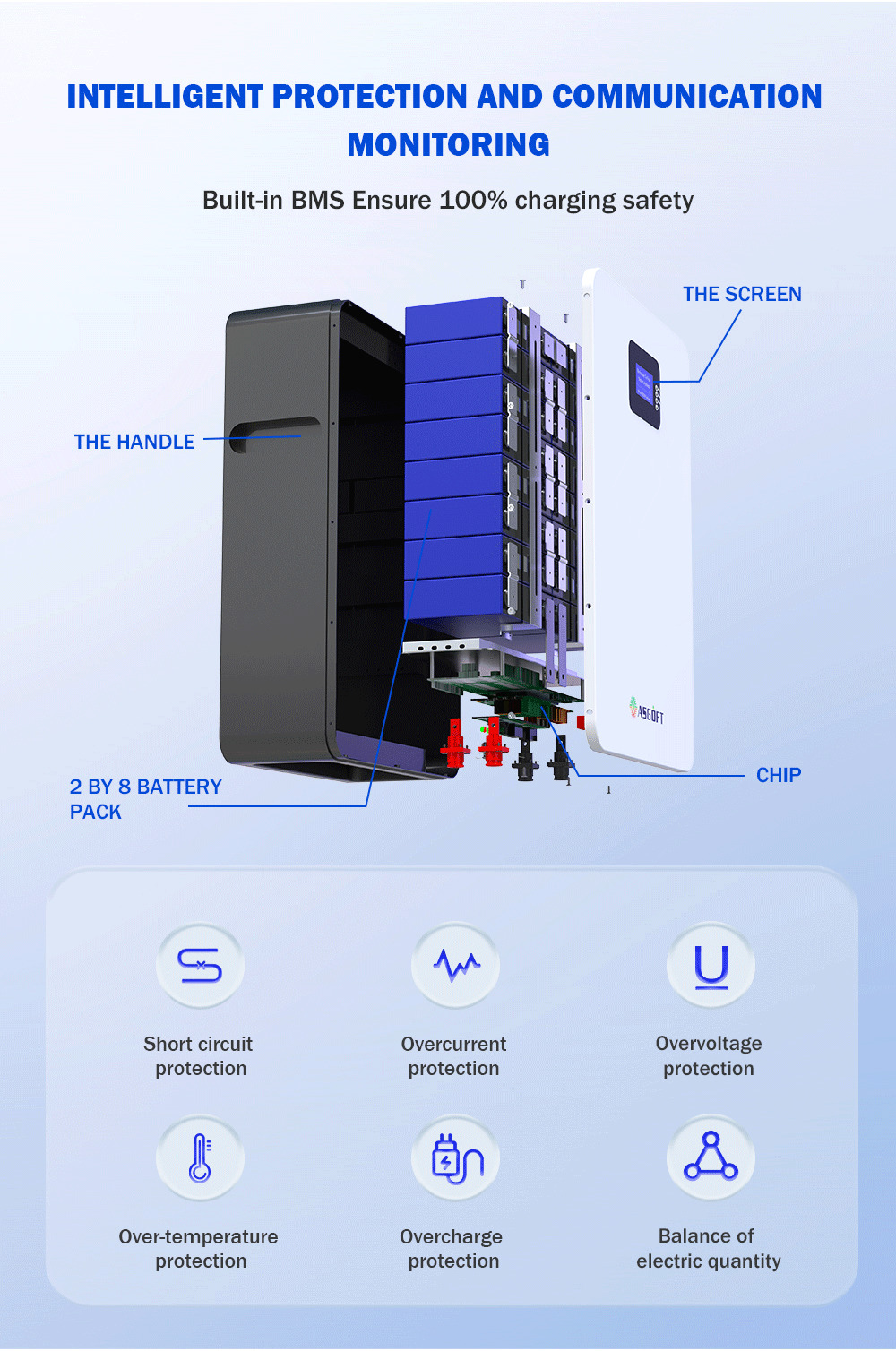

Battery System Management
Ensures the cells remain within safe operating limits and responds if one of the individual cells is outside these limits.

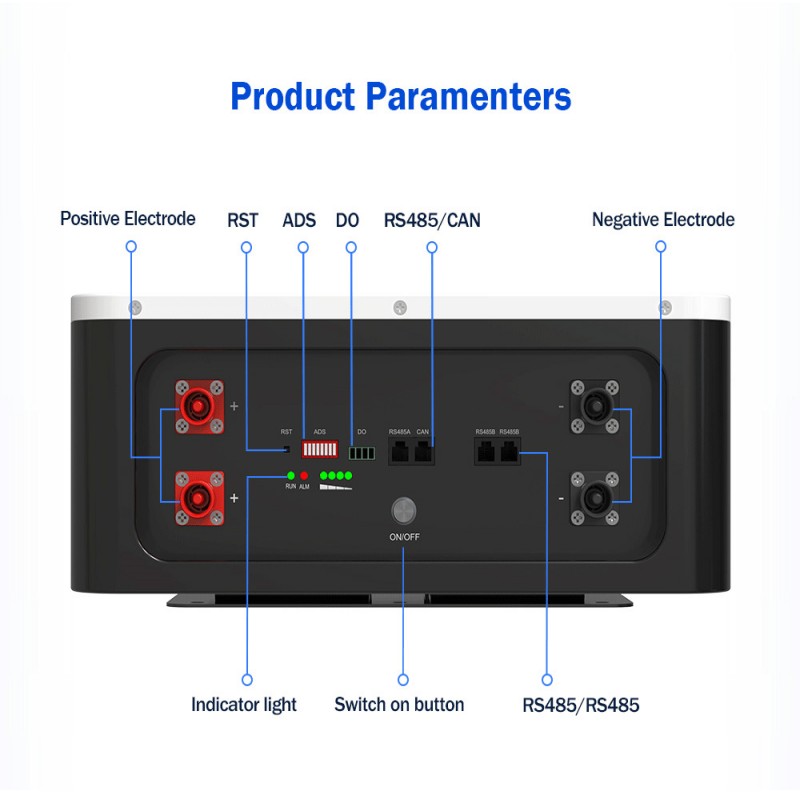

Smart Communication Port
The bottom groove design interface makes it neat. CAN interface. RS485 communication interface indicator. positive and negative interface, such as
plug and play, computer real-time monitoring.
Specification
|
Model
|
ASH-51100/51200/51400/51600/51800
|
||||
|
Battery cell type
|
Lifepo4 (3.2v Prismatic cell)
|
||||
|
Battery Module
|
1 Module
|
2 Module
|
4Module
|
6Module
|
8Module
|
|
Nominal Voltage
|
51.2V
|
||||
|
Battery Capacity
|
100AH
|
200AH
|
400AH
|
600AH
|
800AH
|
|
Rated Power(KWH)
|
5Kwh
|
10Kwh
|
20Kwh
|
30Kwh
|
40Kwh
|
|
Standard charge voltage
|
58.4V
|
||||
|
Max charge current
|
100A
|
||||
|
Discharge cut-off voltage
|
44.8V
|
||||
|
Max discharge current
|
100A
|
||||
|
Display
|
LCD
|
||||
|
Communication interface
|
RS232 / RS485 / CAN
|
||||
|
Discharge temperature range
|
-20°C to + 60°C
|
||||
|

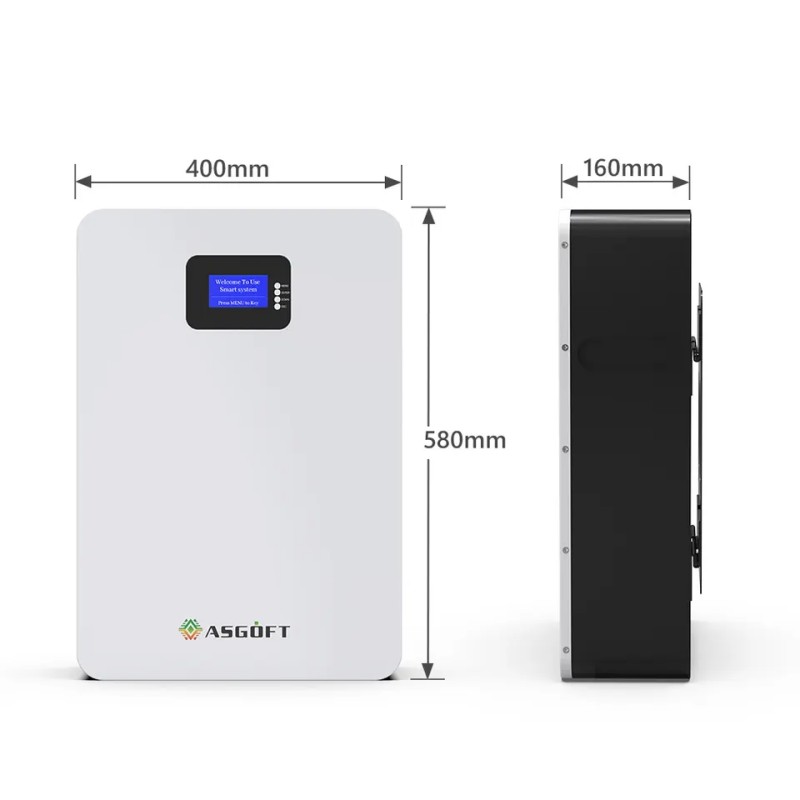

Dimensions
|
580*400*160mm
|
||||
|
Cycle life
|
4000-6000 Times
|
||||
|
Warranty
|
5 Years
|
||||

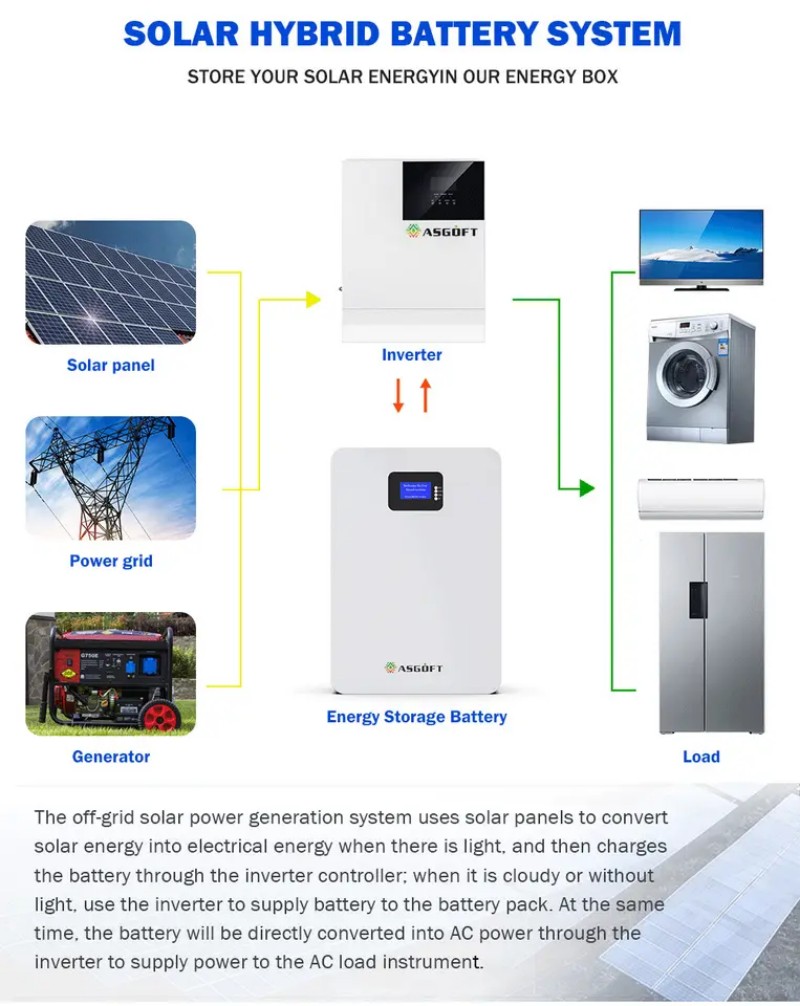

Solar Energy Storage System Advantages
Solar energy storage systems have become increasingly popular in recent years due to the numerous advantages they offer. Here are some of the benefits of using a solar energy storage system:
- Increased Energy Independence: With a solar energy storage system, you can generate and store your own energy, making you less dependent on traditional sources of power. This means that you can reduce your reliance on grid power during peak hours when the cost of electricity is the highest.
- Cost Savings: Investing in a solar energy storage system can result in significant cost savings in the long run. By generating and storing your own power, you can reduce your energy bills and even sell excess energy back to the grid.
- Environmental Benefits: Solar energy is a renewable and sustainable source of energy that does not produce harmful greenhouse gas emissions. By reducing your reliance on fossil fuels, you can help reduce your carbon footprint and contribute to a cleaner environment.
- Increased Power Reliability: Solar energy storage systems provide a reliable backup power source in the event of a power outage. This is especially important for those who live in areas prone to natural disasters or frequent power outages.
- Possibility of Going Off-Grid: With a solar energy storage system, it is possible to go off-grid completely and rely solely on renewable energy. This gives you complete energy independence and has the added benefit of reducing your carbon footprint even further.
In conclusion, solar energy storage systems offer numerous advantages that make them an attractive investment for homeowners and businesses alike. By generating and storing your own energy, you can reduce your energy bills, increase your energy independence, and contribute to a cleaner and more sustainable future.
